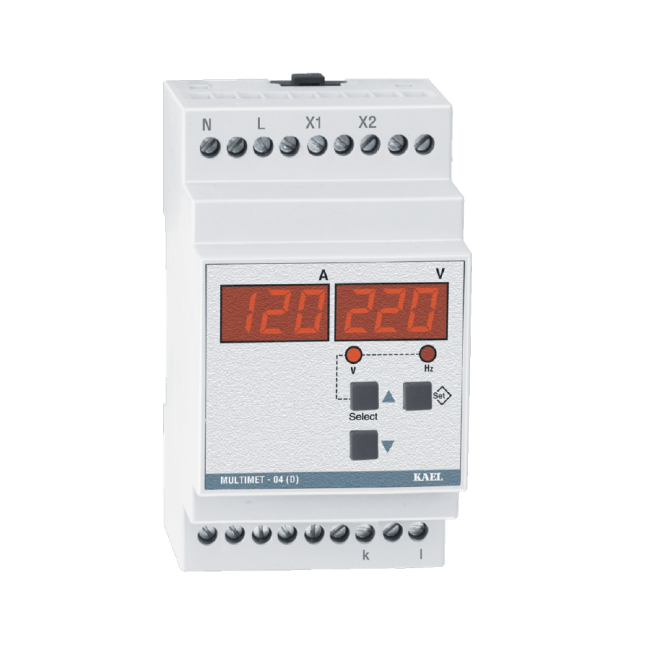

Single Phase Multimeter
£93.34
Multimet-04-(D) gives the ability of tracking electrical parameters for 1 phase systems such as, current, voltages, frequency. Current transformer ratio can be set by the user. Using the up direction button, frequency can be displayed easily.
Availability:
In stock
Only 2 left
SKU
MULTIMET-04-DIN
Microprocessor based
Measurement of 1 phase electrical quantities (VL-N, A, VL-L, Hz)
Setting of current transformer ratio
Easy Access to menu
Reduces both number of measurement equipment used in the panel and connection time
Lower Electrical panel costs
TECHNICAL INFORMATION
Rated Voltage (Un) : 230Vac (L-N)
Operating Range : (0,8-1,1) x Un
Frequency : 50 / 60 Hz
Supply Power Consumption : < 4VA
Current Transformer Ratio : X / 5A
Current Measurement Range : (for seconder current) 0,05 - 6 Amp AC
Voltage Measurement Range : 10 - 500 Vac, 40 - 100Hz
Measurement Sensitivity : %1±1 digit
Contact Current : Max. 3A / 240Vac
Device Protection Class : IP 20
Connector Protection Class : IP 00
Temperature : - 5 °C .... + 50 °C
Connection Type : To connection rail in electrical panel
Dimensions: 53x90x58 mm
Measurement of 1 phase electrical quantities (VL-N, A, VL-L, Hz)
Setting of current transformer ratio
Easy Access to menu
Reduces both number of measurement equipment used in the panel and connection time
Lower Electrical panel costs
TECHNICAL INFORMATION
Rated Voltage (Un) : 230Vac (L-N)
Operating Range : (0,8-1,1) x Un
Frequency : 50 / 60 Hz
Supply Power Consumption : < 4VA
Current Transformer Ratio : X / 5A
Current Measurement Range : (for seconder current) 0,05 - 6 Amp AC
Voltage Measurement Range : 10 - 500 Vac, 40 - 100Hz
Measurement Sensitivity : %1±1 digit
Contact Current : Max. 3A / 240Vac
Device Protection Class : IP 20
Connector Protection Class : IP 00
Temperature : - 5 °C .... + 50 °C
Connection Type : To connection rail in electrical panel
Dimensions: 53x90x58 mm
