Three Phase Multimeter
£93.34

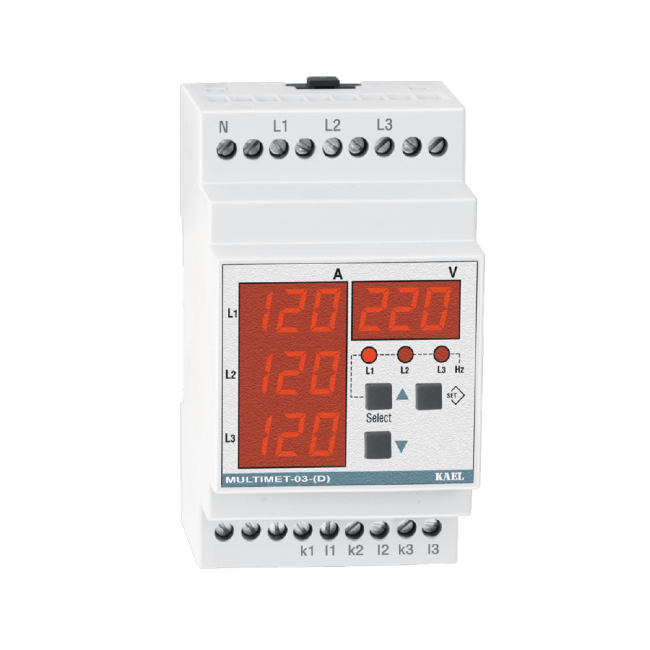

Multimet-03-(D) gives the ability of tracking electrical parameters for 3 phase systems such as, phase currents, phase-neutral & phase-phase voltages, frequency. Current transformer ratio can be set by the user. Using the directions buttons, desired parameters can be accessed easily.
Availability:
In stock
Only 2 left
SKU
MULTIMET-03-DIN
Microprocessor based
Measurement of 3 phase electrical quantities (VL-N, A, VL-L, Hz)
Setting of current and voltage transformer ratios
Easy Access to menu
Reduces both number of measurement equipment used in the panel and connection time.
Lower Electrical panel costs.
TECHNICAL INFORMATION
Rated Voltage (Un) : 230Vac (L1-N)
Operating Range : (0,8-1,1) x Un
Frequency : 50 / 60 Hz
Supply Power Consumption : < 4VA
Current Transformer Ratio : X / 5A
Current Measurement Range : (for seconder current) 0,05 - 6 Amp AC
Voltage Measurement Range : (Phase-Phase) 10 - 500 Vac, 45 - 65Hz
Voltage Measurement Range : (Phase-Neutral )10 - 300 Vac, 45 - 65Hz
Voltage Measurement Range : (For power supply L1 - N) 176V – 242V
Voltage Measurement
Power Consumption : <1VA (for one phase)
Measurement Sensitivity : %1±1 digit
Dimensions: 53x90x48 mm Device Protection Class : IP 20
Connector Protection Class : IP 00
Temperature : - 5 °C .... + 50 °C
Connection Type : To connection rail in electrical panel
Measurement of 3 phase electrical quantities (VL-N, A, VL-L, Hz)
Setting of current and voltage transformer ratios
Easy Access to menu
Reduces both number of measurement equipment used in the panel and connection time.
Lower Electrical panel costs.
TECHNICAL INFORMATION
Rated Voltage (Un) : 230Vac (L1-N)
Operating Range : (0,8-1,1) x Un
Frequency : 50 / 60 Hz
Supply Power Consumption : < 4VA
Current Transformer Ratio : X / 5A
Current Measurement Range : (for seconder current) 0,05 - 6 Amp AC
Voltage Measurement Range : (Phase-Phase) 10 - 500 Vac, 45 - 65Hz
Voltage Measurement Range : (Phase-Neutral )10 - 300 Vac, 45 - 65Hz
Voltage Measurement Range : (For power supply L1 - N) 176V – 242V
Voltage Measurement
Power Consumption : <1VA (for one phase)
Measurement Sensitivity : %1±1 digit
Dimensions: 53x90x48 mm Device Protection Class : IP 20
Connector Protection Class : IP 00
Temperature : - 5 °C .... + 50 °C
Connection Type : To connection rail in electrical panel
