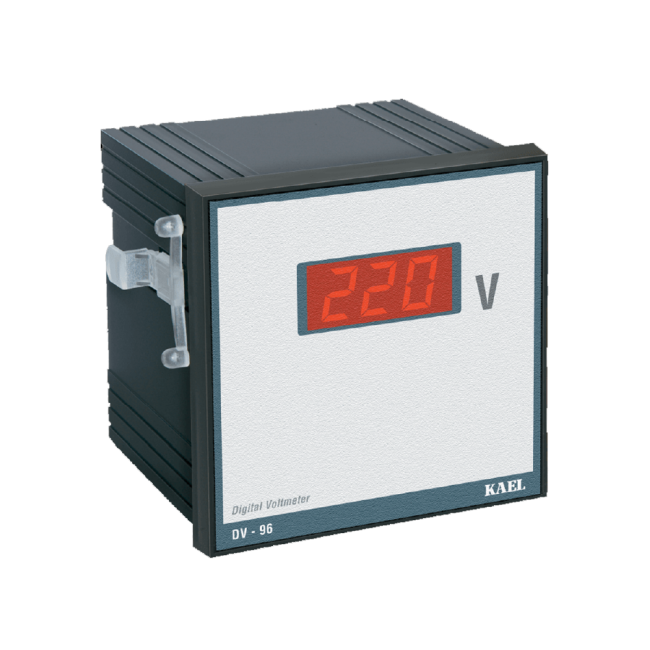

Digital Voltmeter DV-96
£28.72
Compact digital voltmeter for accurate AC voltage measurement up to 500 V. Features a bright 3-digit LED display, operates on 230 VAC with wide frequency compatibility (50/60 Hz), and offers reliable performance in demanding environments. Ideal for panel mounting and industrial applications.
Availability:
In stock
SKU
DV-96
This digital voltmeter is designed for precise monitoring of AC voltage in electrical panels and industrial systems. Operating at a rated voltage of 230 VAC, it supports a wide operating range from 0.8 × Un to 1.1 × Un and measures up to 500 VAC with high accuracy (±1% + digit). The bright 3-digit LED display ensures easy readability, while low power consumption (< 4 VA supply, < 1 VA measurement) enhances efficiency.
Built to perform reliably in harsh conditions, the unit operates within –5 °C to +50 °C and 15%–95% humidity (non-condensing). It offers IP20 device protection and IP00 connector protection, suitable for front panel mounting (tap connection). Available in two compact sizes — DV-72 (72 × 72 × 80 mm) and DV-96 (96 × 96 × 80 mm) — this voltmeter is an excellent choice for electrical panels, power monitoring systems, and control applications.
Built to perform reliably in harsh conditions, the unit operates within –5 °C to +50 °C and 15%–95% humidity (non-condensing). It offers IP20 device protection and IP00 connector protection, suitable for front panel mounting (tap connection). Available in two compact sizes — DV-72 (72 × 72 × 80 mm) and DV-96 (96 × 96 × 80 mm) — this voltmeter is an excellent choice for electrical panels, power monitoring systems, and control applications.
| Phase | Single Phase |
|---|---|
| Rated Voltage | 230 VAC |
| Operating Range | (0.8 - 1.1) x Un |
| Frequency | 50/60 Hz |
| Supply Power Consumption | < 4VA |
| Measurement Input | 0 – 500 VAC |
| Measurement Power Consumption | < 1VA |
| Measurement Sensitivity | %1 + digit |
| Display | 3 Digit LED |
| Protection Class | IP20 |
| Connector Protection Class | IP00 |
| Temperature Range | -5°C ... +50°C |
| Humidity Range | 15% ... 95% (without condensation) |
| Connection Type | Front Panel Tap |
| Dimensions | 96x96x80 mm |
